TJ-C90-102D




液压软管扣压 2 1/2"(Crimping of hydraulic hose assemblies up to 2 1/2" I.D.)
特征

- TJ-C90-102D属于产业用软管及液压软管的扣压?备?＞吖乖旒虮悖⒈沉矫婢?锌垩共僮鳌
- 力量大、速度快，适用于大量?产高精度产品。
- 操作简便的控制系统。
- 本?备以大开口钢模结构?计，适合用于如弯管等特殊管接头的扣压作业。
- 主钢模最大开度 +60mm, 钢模箱安装在?备的正面下部。

TECHNICAL DATA DIE SET
Crimping force/最大扣压力 2200KN/220ton
Crimping range/ 扣压范围 85mm
Max hose size(inches)软管最大直径 2"
Dies opening 60mm
Master die 100mm
Dies (set) STD-C90
Crimping speed/close 10mm/sec
/crimp 3mm/sec
/open 43mm/sec

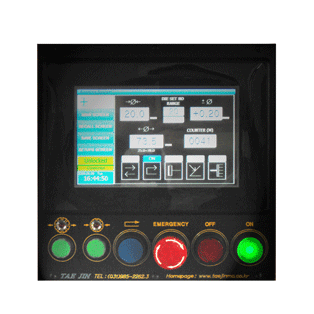

Control TJ-control A optional
TJ-control D included
Standard voltage 220/380volt 60hz 3ph
Motor power 5.5kw

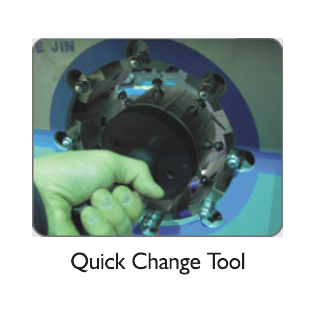

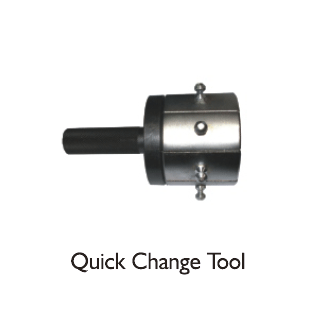

Quick change system included
Back mirror included

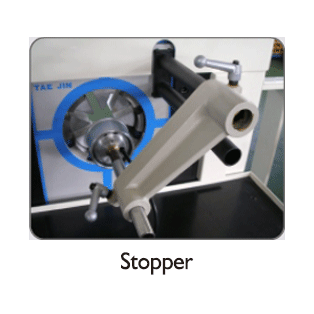

Back stopper included
Electric pedal optional

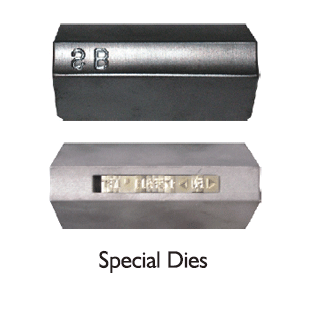

Marking/spacial dies optional
Length 760mm
Width 920mm
Height 1500mm
Weight 980kg
NO CRIMPING RANGE(mm) L(mm)
14 14-16 55
16 16-20 55
20 20-24 55
24 24-26 75
26 26-30 75
30 30-34 75
34 34-39 75
39 39-45 85
45 45-51 85
51 51-57 85
57 57-63 85
63 63-69 85
69 69-77 85
77 77-85 85



  SPECIAL
10 10-12 55
12 12-14 55
